Maverick Self-Draining Spa Pumps
For 1½" x 1½" Plumbing
Buy Manufacturer Direct and Save!
Why Pay Retail? No Middleman!
Prices Include Free Freight*
All our products are built new to order!
Maverick Spa Pumps
[Fig. ]

Our knowledge is powered by 18 patents and over 32 years of experience designing and producing the best spa support products in the hot tub industry.

Maverick Spa Pumps
[Fig. ]
Table ()  Select the Proper Shaft Seal Between the Electric Motor and Wetend From Figure C and D (We will build your pump accordingly):
Industry Standard Seal (-A)
Viton
Pump Seal -A
[Fig. ]
Click below to select


Better Than Industry Standard Seal (-P)

Pump Seal -P
[Fig. ]
Click below to select


The Best Corrosion Resistant Seal (-SC)
Water Chemistry Noncorrosive
Pump Seal -S
[Fig. ]
Click below to select



To Order Your Stealth Spa Pump From Table 3 and Table 4:
. Find your desired pump model number from Table 3 or Table 4 below. . Click the button to match your desired pump seal. . Change the quantity (if needed). . If you need unions or cables for your Stealth pump, select them in Table 5 below. . Click 'Add to Cart' button next to desired accessory and change quantity (if needed). . Go back to your desired pump; Verify the model number, pump seal and quantity are correct. . In the same row as your desired pump, click 'Add to Cart' button below the quantity. . Click button to check and submit your order. . Due to variations in individual computers, our page may not display properly on your computer. When placing your order, please verify your desired pump shaft seal are identified on the model number in Table 2 and Table 3. All pumps ship with the "-A" (std) pump seal unless you choose the "-P" (better) or "-SC" (best) seal.


To select additional Maverick Spa Pump parts and components,
scroll to the table below.


Table () Maverick Spa Pump Unions
Spa Plumbing
[Fig. ]
Part #1660: 1.5" Union with Nut and O-Ring
Spa Plumbing
[Fig. ]
Part #1650: 1.5" Discharge Union with Nut (NO O-Ring)

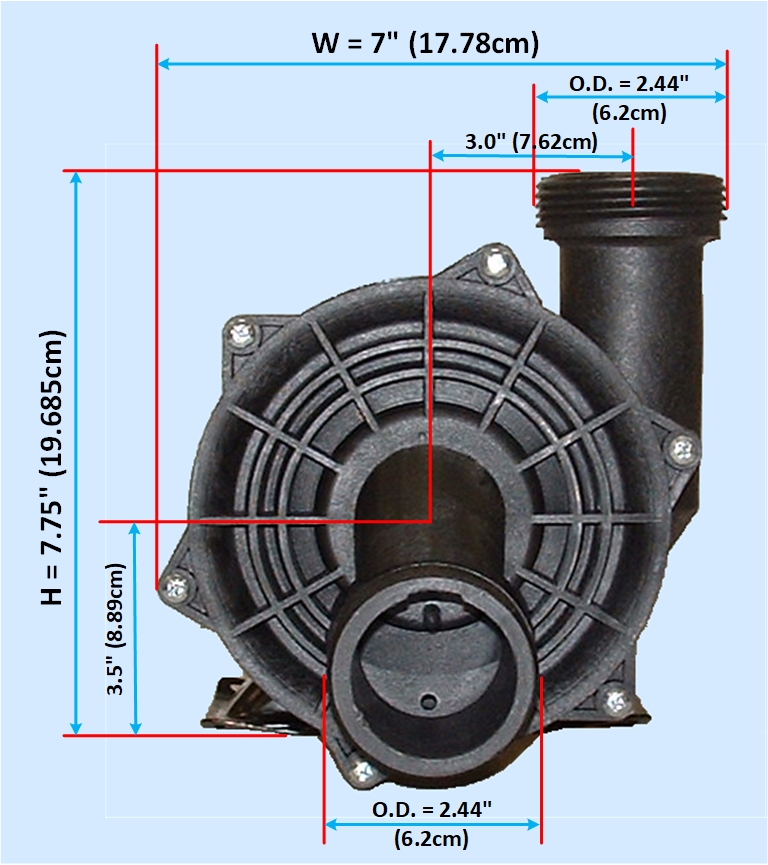

Table () 1.5" Intake, 1.5" Discharge
Spa Plumbing
[Fig. ]
Click here for help with the spa plumbing
Spa Plumbing
[Fig. ]
Part #1660 & Part #1650
Table () Maverick Spa Pump Air Bleeder
Spa Plumbing
[Fig. ]
AB500 Pump Air Bleeder (no valve)
(Photo shows AB500 mounted on Magnaflow. Maverick and Magnaflow have the same threads.)
Spa Plumbing
[Fig. ]
Click to see Air Bleeder dimensions.

Pump weight does not include packaging material or shipping container.

When shopping for a replacement spa pump, always ask for the original Magnaflow.

Models: AE11575-1SS, AE11510-1SS, AE11515-1S, AE23015-1SS

  1. The Maverick is designed to optimize spa pump performance while using the least electrical energy.
  2. The Maverick pump passed all Public Safety tests per UL Standard 1081.
  3. The Maverick pump is powered by A.O.Smith/Magnetek/Emerson/Marathon Electric/Franklin Electric motors and not by inferior quality motors. Even though motor manufacturers may have different physical motor configurations (for example, capacitors and terminals in different locations), all motors are made per our pump performance specifications. Acura Spa pumps are produced and shipped per our model numbers with any of these motor brands.
  4. The Maverick series has powered hundreds of thousands of spas of different brands throughout the world since its introduction in 1988.


The Maverick pump series was first introduced to the portable spa market in 1988 as the first full-rated 2.0hp, 230V, 2-speed pump with a 48-frame motor. The Maverick was also the first pump with an eight-vein impeller design resulting in a dramatic decrease in operational noise while still maintaining high water flow. Throughout the years the Maverick pump has powered many spas made by: Action Spas, Carribean Spas, Catalina Spas, Curtis Spas, Dakota Spas, Diamante Spas, Dolphin Spas, Goodlife Spas, Grecian Spas, Hawkeye Spas, Hydromex, Islander Spas, Jetpool (Brazil), Leisure Spas, Life Spas, Lifespring Spas, Mountain Spring Spas, Orozco International Spas, Pacific Fiberglass, Pacific Pool and Spas (Canada), Platinum Spas, Seacard Pool and Spas, Sunbelt Spas, Sunquest Spas, Thermospas, US Tooling Spas, Vortex Whirlpool Systems, Inc., and many others. The Maverick pump can replace any spa pump with 1.5" intake and 1.5" discharge lines.



NOTES:
Pump Horsepower:
(cd) Horsepower is the continuous duty output power of the motor or the pump load to the motor.
(spl) Horsepower is used by the hot tub industry (for marketing reasons??).
(bd) Horspower is the motor's maximum load (exceeding this load will burn out the motor).

Model numbers with suffix (-1) indicates the motor is single speed.

Model numbers with no suffix indicate discharge straight up.
Model numbers with suffix (-3) indicates the discharge is to the right.
Model numbers with suffix (-4) indicates the discharge is to the left.

No O.E.M. dealers or distributor discounts with limited offer prices.

All pumps are not provided with unions, unions sold separately. Unions are identified by plumbing dimensions (like 1.5" or 2.0"), but these numbers ARE NOT the physical outer pipe dimensions. These numbers indicate the waterflow volume going into and out of the pump. Please use part numbers as identified for your application.

All electrical work must be performed by a licensed electrician.
All plumbing work must meet I.A.P.M.O., UL 1563, and all local codes and regulations and must be performed by a licensed plumbing contractor.



Exploded Views & Parts List

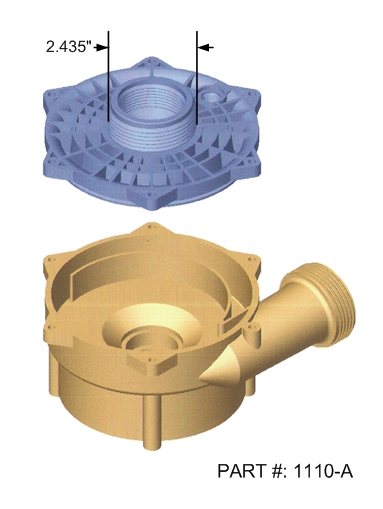

Maverick Volute and Faceplate
Both Intake and Discharge have
the same threads and
outer thread dimensions.

Maverick Exploded View



Maverick Performance Data
Performance Data



Replace your old spa or hot tub pump with the latest technology from Acura Spa Systems, Inc. We have over 1.3 million spa and hot tub pumps sold and operating for the last 22 years. All of our spa and hot tub pumps are ETL listed and tested per UL Standard 1081. Our long lasting spa and hot tub pumps are the quietest, most innovative, and most energy efficient in the industry. We are the only spa pump manufacturer to sell direct to the public. Since 1987, our hot tub pumps have been powered by Magnetek Motors, A.O. Smith Motors, Emerson Motors, Marathon Electric and Franklin Electric Motors. Our pumps for many years have supplied many hot tub manufacturers such as: ThermoSpas, LifeSpas, Islander Spas, Catalina Spas, Diamante Spas and Life Spring Spas.



*Free Freight only for Fedex SmartPost. Other forms of shipping incur additional shipping costs.

**Beating competitor's price: We will meet or beat any competitor's written quotation for hardware of the same capability, such as: plumbing size, voltage, motor horsepower, motor 1 or 2-speed, heater length, safety test report, etc.

A $9.95 Handling charge is applied to all orders.

All products sold per our "Terms and Conditions" found in the "Support" section of our menu.

When your order is produced, the pump motor used (A.O. Smith, Regal Beloit, Marathon Electric, etc.) will be whatever is in stock in our factory at the time.
