Where Energy & Efficiency Prevail!
Knowledge & Experience You Can Trust...
Our knowledge is powered by 17 Patents and over 25 years of experience in designing hot tub pumps. Our spa pumps can power any portable spa with 1½", 2", 2½" or 3" plumbing!
Why pay retail? Buy manufacturer direct & save!
We are the only spa pump manufacturer to sell direct to the public at affordable prices. Only at Acura Spa Systems, consumers can purchase brand new, energy efficient, reliable, top quality hot tub pumps and new motors factory direct with free freight and no middle man at tremendous savings.
Spa Ozonator
Balboa Heaters
Spa Heaters
Digital Boards
Spa Pump Motors
Electrical Components
Plumbing Components
General Part List
Free Freight* Big Savings!! Will Beat Any Competitor's Price!**
If you like our prices bookmark this page for future savings!
Row  56-Frame Universal Spa Pumps for 2" x 2" Plumbing
Magnaflow MS23050ME MS23050ME Direct Replacement for...
Waterway: 3721621-1D
Aquaflo:
Vico:
2" x 2" plumbing, side discharge
Pump intake & discharge are 3" outer diameter (measured at the threads)
56-Frame, 5hp, 230V, 2-Speed
    Regular Price: $359.99
      Special Price: $265.45

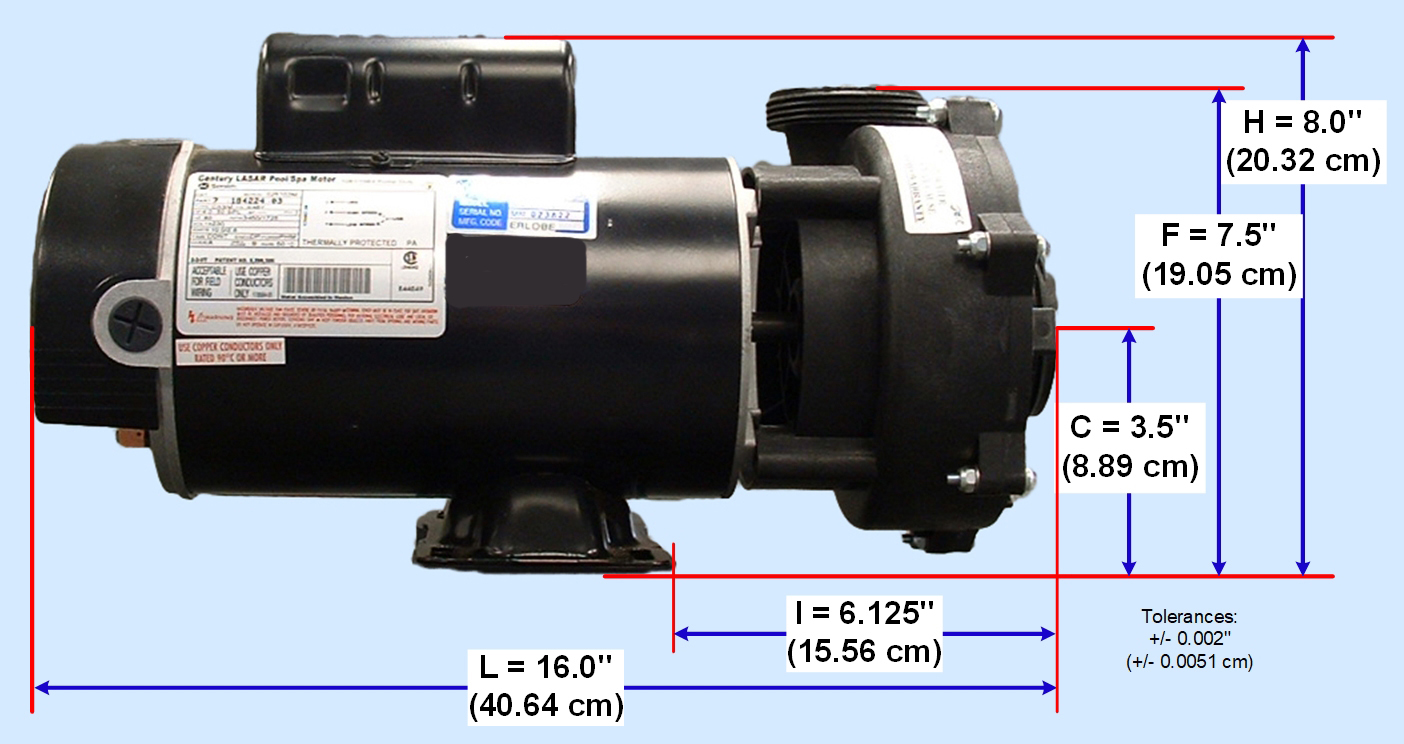

Click to see dimensions and to order pump
Magnaflow MS23032-ME MS23032ME Direct Replacement for...
Waterway: 3721221-1D
Aquaflo:
Vico:
2" x 2" plumbing, side discharge
Pump intake & discharge are 3" outer diameter (measured at the threads)
56-Frame, 4hp, 230V, 2-Speed
    Regular Price: $349.99
      Special Price: $249.99
Click to see dimensions and to order pump
Magnaflow MS23026-ME MS23026ME Direct Replacement for...
Waterway: 3720821-1D
Aquaflo:
Vico:
2" x 2" plumbing, side discharge
Pump intake & discharge are 3" outer diameter (measured at the threads)
56-Frame, 3hp, 230V, 2-Speed
    Regular Price: $349.99
      Special Price: $249.99
Click to see dimensions and to order pump
Row  48-Frame Universal Hot Tub Pumps for 2" x 2" Plumbing
Magnaflow MM23040 MM23040 Direct Replacement for...
Waterway: 3421821-1A
Aquaflo:
Vico:
2" x 2" plumbing, side discharge
Pump intake & discharge are 3" outer diameter (measured at the threads)
48-Frame, 5hp, 230V, 2-Speed
    Regular Price: $415.73
      Special Price: $299.95
Click to see dimensions and to order pump
Magnaflow MM23032-ME MM23032ME Direct Replacement for...
Waterway: 3421221-1A
Aquaflo: FMXP/XP2
Vico:
2" x 2" plumbing, side discharge
Pump intake & discharge are 3" outer diameter (measured at the threads)
48-Frame, 4hp, 230V, 2-Speed
    Regular Price: $349.99
      Special Price: $249.99
Click to see dimensions and to order pump
Magnaflow MM23026-ME MM23026ME Direct Replacement for...
Waterway: 3420820-1A
Aquaflo:
Vico:
2" x 2" plumbing, side discharge
Pump intake & discharge are 3" outer diameter (measured at the threads)
48-Frame, 3hp, 230V, 2-Speed
    Regular Price: $329.99
      Special Price: $229.99
Click to see dimensions and to order pump
Magnaflow MM23020-ME MM23020ME Direct Replacement for...
Waterway: 3420620-1A
Aquaflo:
Vico:
2" x 2" plumbing, side discharge
Pump intake & discharge are 3" outer diameter (measured at the threads)
48-Frame, 2hp, 230V, 2-Speed
    Regular Price: $319.99
      Special Price: $225.95
Click to see dimensions and to order pump
Magnaflow MM11520-ME MM11520ME Direct Replacement for...
Waterway: 3410610-1A
Aquaflo:
Vico:
2" x 2" plumbing, side discharge
Pump intake & discharge are 3" outer diameter (measured at the threads)
48-Frame, 2hp, 115V, 2-Speed
    Regular Price: $289.99
      Special Price: $209.95
Click to see dimensions and to order pump
Row  48-Frame Universal Hot Tub Pumps for 1½" x 1½" Plumbing
Maverick AE11515 AE11515 Direct Replacement for...
Waterway: 3420610-1A
Aquaflo:
Vico:
1½" x 1½" plumbing, side discharge
Pump intake & discharge are 2.435" outer diameter (measured at the threads)
48-Frame, 1.5hp, 115V, 2-Speed
    Regular Price: $289.99
      Special Price: $257.00
Click to see dimensions and to order pump
Row  48-Frame Stealth Circulating Hot Tub Pumps for 1½" x 1½" Plumbing
Stealth Circulating Pump AC11575 Direct Replacement for...
Waterway: Iron-Might
Aquaflo: Circ Master
Vico:
1½" x 1½" plumbing, side discharge
Pump intake & discharge are 2.435" outer diameter (measured at the threads)
48-Frame, 1/8hp, 115V, 1-Speed
    Regular Price: $239.95
      Special Price: $114.95
Click to see dimensions and to order pump
Stealth Circulating Pump AC23075 Direct Replacement for...
Waterway: Iron-Might
Aquaflo: Circ Master
Vico:
1½" x 1½" plumbing, side discharge
Pump intake & discharge are 2.435" outer diameter (measured at the threads)
48-Frame, 1/8hp, 230V, 1-Speed
    Regular Price: $244.95
      Special Price: $122.95
Click to see dimensions and to order pump
Row  48-Frame Electric Motors
BN37 48-Frame Motor
<Click for specifications and to order>
 BN37              $161.95

 48-Frame
 115V@60Hz
 1.5HP spl, 1.0HP cd
 11.0 Amps High, 2.9 Amps Low
BN38 48-Frame Motor
<Click for specifications and to order>
 BN38              $190.95

 48-Frame
 115V@60Hz
 1.5HP spl, 1.0HP cd
 10.3 Amps High, 3.1 Amps Low
BN34 48-Frame Motor
<Click for specifications and to order>
 BN34              $209.95

 48-Frame
 230V@60Hz
 2.0HP spl, 1.5HP cd
 8.0 Amps High, 2.6 Amps Low
BN51 48-Frame Motor
<Click for specifications and to order>
 BN51              $220.95

 48-Frame
 230V@60Hz
 3.0HP spl, 2.0HP cd
 10.5 Amps High, 2.6 Amps Low
BN61 48-Frame Motor
<Click for specifications and to order>
 BN61              $228.95

 48-Frame
 230V@60Hz
 4.0HP spl, 2.0HP cd
 8.5 Amps High, 2.8 Amps Low
BN62 48-Frame Motor
<Click for specifications and to order>
 BN62              $249.95

 48-Frame
 230V@60Hz
 5.0HP spl, 3.0HP cd
 12.0 Amps High, 3.5 Amps Low
Row  56-Frame Electric Motors
B234 56-Frame Motor
<Click for specifications and to order>
 B234              $234.95

 56-Frame
 230V@60Hz
 4.0HP spl, 2.6HP cd
 10.0 Amps High, 3.5 Amps Low
B235 56-Frame Motor
<Click for specifications and to order>
 B235              $284.95

 56-Frame
 230V@60Hz
 5.0HP spl, 3.0HP cd
 12.0 Amps High, 4.4 Amps Low
B2235 56-Frame Motor
<Click for specifications and to order>
 B2235              $294.95

 56-Frame
 230V@60Hz
 5.0HP spl, 3.0HP cd
 12.0 Amps High, 3.0 Amps Low

 Energy Efficient Motor, Low Amp Draw
 Direct Replacement for B235



<Click here to see Acura Spa Limited Warranty> <Click here to see A.O.Smith Electric Motor Warranty>

The Magnaflow pump is powered by A.O.Smith, Magnetek, Emerson, Marathon Electric, Franklin Electric, SNTech, Regal Beloit or Century motors and not by inferior quality motors. Even though motor manufacturers may have different physical motor configurations (for example, capacitors and terminals in different locations), all motors are made per our pump performance specifications. Acura Spa pumps are produced and shipped per our model numbers with any of these motor brands.

The Universal Spa Pumps (USP) is a series of hot tub pumps made for all portable spas with 2" or 1.5" plumbing and are direct replacements for all spa brands. The USP are powered by 48-frame or 56-frame Thru-bolt electrical motors. At Acura Spa Systems, we produce pumps with 1/15 HP, 1/8 HP, 3/4 HP, 1 HP, 1 1/2 HP, 2 HP, 2 1/2 HP, 3 HP, 3 1/4 HP, 4  HP, 4 1/2 HP and 5 HP. For over 25 years we have purchased spa electrical motors from many different major electrical motor manufactures like Franklin Electric Motors, Emerson Electric Motors, Magnetek Electric Motors, A.O.Smith Electric Motors, Marathon Electric Motors, Dynatech Electric Motors, SNTech Electric Motors, Centurion Electric Motors, Century Electric Motors, Regal Beloit Electric Motors and GE electric motors.

A jet spa pump motor, also known as a high speed pump operates at 3450 rpm in order to produce water jet pressure. However a circulating pump motor only operates at 1725 rpm to pump water through the spa filter and the heater chamber. These pump motors, either high speed or low speed, are single speed pumps. The hot tub industry alsp has two speed pump motors that operate at 3450 rpm on high speed and 1725 rpm on low speed. The frequency for all motors sold in US, Mexico and Canada is always 60 HZ. All of our motors are 115 volts or 230 Volts. We also carry 50 HZ pumps for Europe and other countries that provide 50 HZ frequencies. For a replacement spa pump always check the motor name plate for proper voltage and frequency. All our are motors UL, ETL, CSA, CE and IP55 approved. Electric motor companies have produced spa motors to meet our pumps specification for various pump loads. We can provide a replacement motor with the same spa motor specifications.

The electrical motor manufactures sell their motors to spa pump manufacturers such as Waterway Plastics, Aqua-Flo, Aqua-Flo by Gecko, Vico pumps, Power Rite, Balboa, Sta Rite, Balboa Water Group, Hydro Air Europe, Premier Pumps. Spa pump manufacturers submit for testing under UL standard 1081, CSA for Canada and CE for Europe.
Most portable hot tubs are plumbed with 1.5", 2.0" plumbing. These standard plumbing connections are defined by Nema, IAPMO and UL standards.

Hot tub pump manufacturers supply pumps to spa manufacturers such as: Alp Spas, Affordable Spas, Action Spas, Hot Spring Spas, Sundance Spas, Vita Spas, Maax Spas, Saratoga Spas, Clear Water Spas, Caldera Spas, LA Spas, Dolphin Spas, Diamante spas, Sensation Spas, PDC Spas, Hawkeye Spas, Morgan Spas, US Spas, Cal Spas, Advanced Spa Designs, Thermospas, Aquamonde Spas, Aquamonde Hot Tub, Free Flow Spas, Viking Spas, Sweetwater Spas, Aspen Spas, Nordic Spas, Apollo Spas, United Spas, Life Spas, True Force Spas, Country Leisure Manufacturing, Catalina Spas, Caribbean Spas, Curtis Spas, Hydro Spas, Spa Manufacturers, Atlas Spa, Pacific Marquis, Beachcomer, Aris Spas, Tuff Spas, Sun Ray Spas, Leisure Bay Spas, Master Spas, Blue Ridge by Jacuzzi, South West Industries, BullFrog Spas, Sunset Spas, Paradise Spas, Turbo spas, Spa and Tub Manufacturer, Sunquest Spas, Spa Crest, Spas by Design, Spa Plus, QCA Spas, South Pacific Spas, Anton Spas, Charisma Spas, Sunrise Spas, Bahamas Spas, Santa Barbara Spas, Safari Spas, Bradford Spas, US Spas, Four Wind Spas, Millennium Spas, Seaside Spas, Icon Spas, Keys Backyards, Hot Tub Factory, Gulf Cost Spas, Gatsby spas, Emerald Spas, Blue Falls Mfg, Aber Hot Tubs, Aqua Mystique Spas, Aqua 4 Fun Spas, Aquamarine Spas, Tiger River Spas, Aquatique Industries, Australian Spas, Baja Spas, Blue Water Spas, Classic Spas, Clipper Spa Manufacturer, Clear Water Spas, Caldera Spas, Watking Spa Manufacture, Hot Spring Spas, Royal Spas, La-Z-Boy Spas, Fort Wayne Spas, Esther William Spas, Coast Spas, Water Edge Spas, Cal Spas, Cal Spa, Rio Swim Spas, Diamond Back Spas, Pacific Pool and Spas, Artesian Spas, Izzi Manufactuing, Jacuzzi, Seven Seas Spa, Monalisa Spas, California Cooperage Spas, Coleman Spas, Caldera Spas, Swim Spa Manufacturers, Strong Spas, Aries Spas, Artic Spas, Roberts Hot Tub, Alp Spas/Associated Leisure Products, Bullfrog Spas, Carribbean Spas, Country Leisure Spas, Curtis Spas, D. M. Industries, Dakota Spas, Diamonte Spas/Sensation Spas, Dimension One Spas, Dolphin Spas, Goodlife Spas, Grecian Spas, Hawkeye Spas, Islander Spas, ITT Industries/HydroAir (Europe), Jetpool (Brazil), Leisure Spas/Sedona Spas, Life Spas, Lifespring Spas, Marathon Spas, Mountain Springs Spas, Orozco International Spas, Pacific Fiberglass, Pacific Pool and Spas (Canada), Phoenix Spas, Platinum Spas, Seacard Pool and Spas, Sequoia Spas, Sunbelt Spas, Sunquest, ThermoSpas, US Tooling Spas, United Super Spas, Vortex Whirlpool Systems, Inc. and many others.

Spa manufacture submit their spas for testing under UL standard 1563 for US, CSA for Canada and CE for Europe.

The USP series of spa pumps offer 2" inlet and 2" outlet with a Buttress thread. The USP outer thread diameter is 3.096" for the 2" inlet and outlet. The same threads are used by Waterway Pumps, Executive Pump, Boss Pumps, Viper Pumps, Aqua-Flo Pumps, Vico Pumps, Balboa Pumps, Sta Rite Pumps, Power Rite Pumps, Gecko Pumps, Flow Master Pumps, Champion Pumps and many others.

The USP series of hot tub pumps also offer 1.5" inlet and 1.5" outlet with Buttress thread. The USP outer thread diameter is approx. 2.5" for the 1.5" inlet and outlet. The same threads are used by Waterway Pumps, Aqua-Flo Pumps, Vico Pumps, Balboa Pumps, Sta Rite Pumps, Power Rite Pumps, Gecko Pumps, Premier Pumps and many others.

If you have a portable hot tub we can supply you with a replacement spa pump.

SNTech Spa Pumps, SNTech Spa Motors, SNTech Hot Tub Pumps, SNTech Hot Tub Motors, Regal Beloit Spa Pumps, Regal Beloit Hot Tub Pumps, Regal Beloit Spa Motors, Regal Beloit Hot Tub Motors, Century Hot Tub Pumps, Century Spa Pumps, Century Spa Motors, Century Hot Tub Motors, Dynatech spa pump, Dynatech hot tub pump, Dynatech spa motor, Dynatech hot tub motor, Dyna-Tech spa pump, Dyna-Tech hot tub pump, Dyna-Tech spa motor, Dyna-Tech hot tub motors



*Free Freight only for Fedex SmartPost. Other forms of shipping incur additional shipping costs.

**Beating competitor's price: We will meet or beat any competitor's written quotation for hardware of the same capability, such as: plumbing size, voltage, motor horsepower, motor 1 or 2-speed, heater length, safety test report, etc.

A $7 Handling charge is applied to all orders.

All products sold per our "Terms and Conditions" found in the "Support" section of our menu.

When your order is produced, the pump motor used (A.O. Smith, Regal Beloit, Marathon Electric, etc.) will be whatever is in stock in our factory at the time.
