B2235 Electric Motor

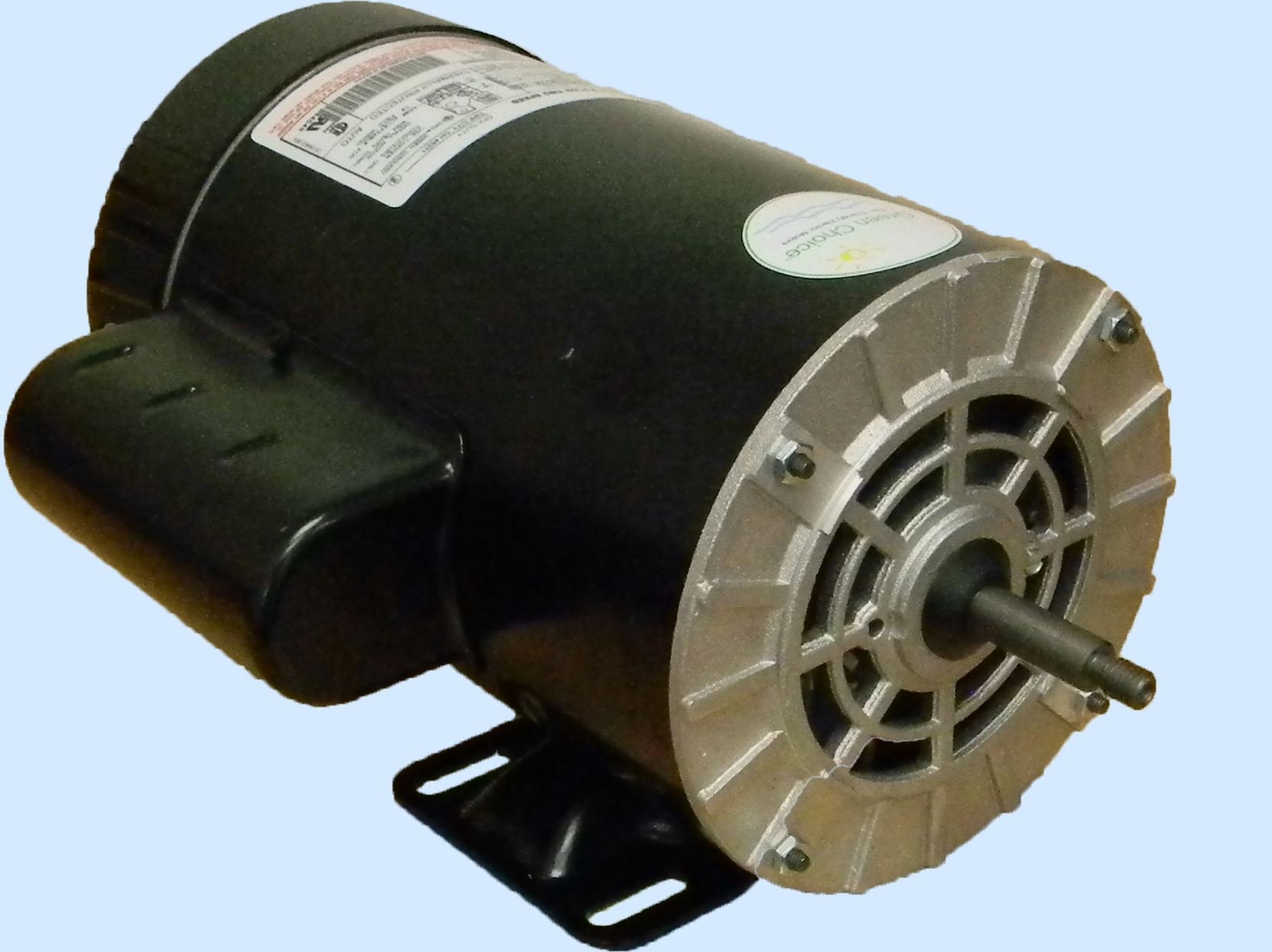

B2235 56-Frame Motor B2235-9 56-Frame Motor
Brand new as received and tested by Motor Mfg.
Big Savings!  *Free Freight-One Way!

Catalog number B2235 is a 56 Frame through bolt pool and spa pump motor: 2-speed, UL 1081 and UL 1563 approved. Capacitor start, 2/4 pole, ball bearing. The B2235 is a pool and spa pump motor, 3.0HP cd (5.0HP spl) on high speed, 3450 RPM high speed and 1725 RPM low speed, 230 volts, R56Y Nema/IEC Frame, Full Loaded Amps 12.0 on high speed and 3.0 on low speed, Thermally Protected Auto-Reset, 1.0 Service Factor, 0.5" Shaft Diameter, 2-5/16" Shaft Length, Insulation Class B.

For years the B2235 has been used by Hayward Pool and Spa Pumps, Waterway Pool and Spa Pumps, American Products Pool and Spa Pumps, Zodiac Pool and Spa Pumps, Sta-Rite Pool and Spa Pumps, Pac Fab Pool and Spa Pumps, Vico Spa Pumps, Balboa Pumps, Aquaflo Spa Pumps, Gecko Spa Pumps, Premier Pool and Spa Pumps, Power Right Industries Spa Pumps and many other spa and pool pump manufactures.

The B2235 was first introduced by Magnetek and continued to be produced by A.O.Smith and Regal Beloit. Currently it is produced under the Centurion name by Regal Beloit. It replaces all 56 Frame through bolt pool and spa motors with the same specifications that are made by Emerson Electric Motors, Franklin Electric Motors, GE Motors, Marathon Electric Motors, Dynatech Motors, SNTech Motors.


Table () - B2235 Electric Motor and Spa Pump for 2" x 2" Plumbing
B2235 Thru-Bolt Dimensions B2235 Wetend Dimensions

For wetend detail drawings, click above.
B2235 56-Frame Motor + Spa Pump Wetend
     Motor    + Wetend = Do It Yourself!***
  +   = 

(When bought together)



Magnaflow-56 MS223050
MS223050 for 2" x 2" Plumbing
Click here to purchase a complete
factory assembled, water tested
hot tub pump
Wetend Exploded View


Pump Horsepower:
(cd) Horsepower is the continuous duty output power of the motor or the pump load to the motor.
(spl) Horsepower is used by the hot tub industry (for marketing reasons??).
(bd) Horspower is the motor's maximum load (exceeding this load will burn out the motor).

Model numbers with suffix (-1) indicates the motor is single speed.

Model numbers with no suffix indicate discharge straight up.
Model numbers with suffix (-3) indicates the discharge is to the right.
Model numbers with suffix (-4) indicates the discharge is to the left.

No O.E.M. dealers or distributor discounts with limited offer prices.

All pumps are not provided with unions, unions sold separately. Unions are identified by plumbing dimensions (like 1.5" or 2.0"), but these numbers ARE NOT the physical outer pipe dimensions. These numbers indicate the waterflow volume going into and out of the pump. Please use part numbers as identified for your application.

All electrical work must be performed by a licensed electrician.
All plumbing work must meet I.A.P.M.O., UL 1563, and all local codes and regulations and must be performed by a licensed plumbing contractor.


Most portable spas and hot tubs are equipped with thru bolt motors, 48-Frame or 56-Frame. When looking for a replacement spa pump motor follow these steps:
(1) Look for the label provided by the original electric motor manufacturer Manufacturers include "Century", "Magnetek", "A.O.Smith", "Regal Beloit", "Emerson", "Franklin Electric", "GE", "Centurion", "SNTech", "Dynatech".
(2) Identify the voltage required (115 volts or 230 volts), "high" and "low" speeds (spa pump motors are typically 3450 RPM high speed and 1725 RPM low speed). Single speed motors are "high" speed (3450 RPM). Circulating pump motors are "low" speed (1750 RPM).
(3) Identify the amperage and ALWAYS choose a replacement motor with the same or higher amperage on high speed.
NOTE: All the motors are identified by original motor manufacturer catalogue number. Catalogue numbers are issued by the motor companies to be used by distributors. Motor manufacturers also assign EMI numbers (also known as part numbers) to pump manufacturers to distinguish between distributors and pump manufacturers, however all motors are the same.

Hot tub pump manufacturers supply pumps to spa manufacturers such as: Alp Spas, Affordable Spas, Action Spas, Hot Spring Spas, Sundance Spas, Vita Spas, Maax Spas, Saratoga Spas, Clear Water Spas, Caldera Spas, LA Spas, Dolphin Spas, Diamante spas, Sensation Spas, PDC Spas, Hawkeye Spas, Morgan Spas, US Spas, Cal Spas, Advanced Spa Designs, Thermospas, Aquamonde Spas, Aquamonde Hot Tub, Free Flow Spas, Viking Spas, Sweetwater Spas, Aspen Spas, Nordic Spas, Apollo Spas, United Spas, Life Spas, True Force Spas, Country Leisure Manufacturing, Catalina Spas, Caribbean Spas, Curtis Spas, Hydro Spas, Spa Manufacturers, Atlas Spa, Pacific Marquis, Beachcomber, Aris Spas, Tuff Spas, Sun Ray Spas, Leisure Bay Spas, Master Spas, Blue Ridge by Jacuzzi, South West Industries, BullFrog Spas, Sunset Spas, Paradise Spas, Turbo spas, Spa and Tub Manufacturer, Sunquest Spas, Spa Crest, Spas by Design, Spa Plus, QCA Spas, South Pacific Spas, Anton Spas, Charisma Spas, Sunrise Spas, Bahamas Spas, Santa Barbara Spas, Safari Spas, Bradford Spas, US Spas, Four Wind Spas, Millennium Spas, Seaside Spas, Icon Spas, Keys Backyards, Hot Tub Factory, Gulf Cost Spas, Gatsby spas, Emerald Spas, Blue Falls Mfg, Aber Hot Tubs, Aqua Mystique Spas, Aqua 4 Fun Spas, Aquamarine Spas, Tiger River Spas, Aquatique Industries, Australian Spas, Baja Spas, Blue Water Spas, Classic Spas, Clipper Spa Manufacturer, Clear Water Spas, Caldera Spas, Watking Spa Manufacture, Hot Spring Spas, Royal Spas, La-Z-Boy Spas, Fort Wayne Spas, Esther William Spas, Coast Spas, Water Edge Spas, Cal Spas, Cal Spa, Rio Swim Spas, Diamond Back Spas, Pacific Pool and Spas, Artesian Spas, Izzi Manufactuing, Jacuzzi, Seven Seas Spa, Monalisa Spas, California Cooperage Spas, Coleman Spas, Caldera Spas, Swim Spa Manufacturers, Strong Spas, Aries Spas, Artic Spas, Roberts Hot Tub, Alp Spas/Associated Leisure Products, Bullfrog Spas, Carribbean Spas, Country Leisure Spas, Curtis Spas, D. M. Industries, Dakota Spas, Diamonte Spas/Sensation Spas, Dimension One Spas, Dolphin Spas, Goodlife Spas, Grecian Spas, Hawkeye Spas, Islander Spas, ITT Industries/HydroAir (Europe), Jetpool (Brazil), Leisure Spas/Sedona Spas, Life Spas, Lifespring Spas, Marathon Spas, Mountain Springs Spas, Orozco International Spas, Pacific Fiberglass, Pacific Pool and Spas (Canada), Phoenix Spas, Platinum Spas, Seacard Pool and Spas, Sequoia Spas, Sunbelt Spas, Sunquest, ThermoSpas, US Tooling Spas, United Super Spas, Vortex Whirlpool Systems, Inc. and many others. Spa manufacture submit their spas for testing under UL standard 1563 for US, CSA for Canada and CE for Europe.


*Free Freight only for Fedex SmartPost. Other forms of shipping incur additional shipping costs.

**Beating competitor's price: We will meet or beat any competitor's written quotation for hardware of the same capability, such as: plumbing size, voltage, motor horsepower, motor 1 or 2-speed, heater length, safety test report, etc.

***We do not provide assembly instruction for "DIY". Parts sold as "DIY" are not warranted by Acura Spa Systems, Inc. Just as tire alignment is critical for tire wear on your car, proper motor shaft alignment to the pump is critical for the longevity of the pump. At Acura Spa System, we use factory made jigs to ensure proper alignment when we assemble the pumps.

A $9.95 Handling charge is applied to all orders.

All products sold per our "Terms and Conditions" found in the "Support" section of our menu.

When your order is produced, the pump motor used (A.O. Smith, Regal Beloit, Marathon Electric, etc.) will be whatever is in stock in our factory at the time.

All motors are new as supplied to us and tested by the motor manufacturer. Acura Spa Systems only box the motor and ship it. We do not test the motors under the "DIY" program. Our complete pump/motor assemblies are always water tested and assembled properly with the proper alignments.
