Spa Pumps, 56 or 48 Frame
From $199.95, $20 Freight!
2" x 2", 2" x 2½", 2½" x 2½" Plumbing

Made in California
Buy factory direct
and save!

Imported from China
With low prices!
These pumps are for spas, select yours!
Step ()  Measure your existing pump outer thread diameter for inlet and outlet as shown in Figures A and B. Select the proper O.D. (Outer Diameter) in Figure A or Figure B by clicking the proper button below.
Magnaflow (discharge up)
Selected

Selected

[Fig. ]
Magnaflow (discharge up)
Click below if you need 3.5" Intake x 3.0" Discharge


You need Part #1690 from Table 9.
[Fig. ]
Step ()  Select the Pump Discharge Orientation that Matches Your Spa Plumbing from Figures C, D or E. (Look at your pump from the spa plumbing end, not from the electrical motor end):

Discharge Right (Suffix -3)
Magnaflow (discharge right)
[Fig. ]
Click below to select



Discharge Up (No Suffix)
Magnaflow (discharge up)
[Fig. ]
Click below to select



Discharge Left (Suffix -4)
Magnaflow (discharge left)
[Fig. ]
Click below to select


Step ()  We will automatically install the industry standard seal selected on Figure F. For corrosive spa water (with chlorine, bromine, salt, etc.) we recommend the corrosion resistant seal from Figure H. Protect your motor from your spa water!:
Industry Standard Seal (-A)
Viton
Pump Seal -A
[Fig. ]
Click below to select


Better Than Industry Standard Seal (-P)

Pump Seal -P
[Fig. ]
Click below to select


The Best Corrosion Resistant Seal (-S)

Pump Seal -S
[Fig. ]
Click below to select


Step ()  When looking for a replacement spa pump follow these steps:
(a) Look for the label provided by the original electric motor manufacturer (Figure ) shows an "A.O.Smith" label indicating 230 Volts and Amps are 12.0/4.4 indicating 12.0 high and 4.4 low.
(b) Identify the voltage required (115 volts or 230 volts).
(c) Most motors operate at 1725 RPM for low speed and 3450 RPM for high speed.
(d) Identify the amperage and ALWAYS choose a replacement motor with the same or higher amperage on high speed.
[Fig. ]
A.O.Smith Motor Label
Example: Figure shows an "A.O.Smith" label indicating 230 Volts and 12.0 Amps High Speed (Amps are 12.0/4.4 indicating 12.0 high and 4.4 low). The label also shows the wiring diagram indicating how to hook up low speed and high speed.
Note: Your motor was made by one of these manufacturers "Century", "Magnetek", "A.O.Smith", "Regal Beloit", "Emerson", "Franklin Electric", "GE", "Centurion", "SNTech", "Dynatech", and "LX". The manufacturers are required to show the same information on their name plate label.
Click on the pump model number below to see dimensions...
G522032
Model Numbers: G522032E and G522032
[Fig. ]
G522050
Model Numbers: G522050 and G522052
[Fig. ]
G522050EX
Model Numbers: G522050E
[Fig. ]
G522050EX
Model Numbers: G522050EX
[Fig. ]
Click here to see how Dr. Benton in California has saved $50.00 per month since 2013 on his electrical bill using the MS23050EX.
Click on the pump model number below to see dimensions...
G422020
Model Numbers: G422020
[Fig. ]
G422026
Model Numbers: G422026
[Fig. ]
G422032
Model Numbers: G422032
[Fig. ]
G422040
Model Numbers: G422040 and G422050
[Fig. ]

Click on the pump model number below to see dimensions...
G411020
Model Numbers: G411020
[Fig. ]

Table ()   2.0" Intake, 2.0" Discharge
Spa Plumbing
[Fig. ]
Click here for help with the spa plumbing
Spa Plumbing
[Fig. ]
Part #1652 & Part #1662
Table ()   Spa Pump Air Bleeder
Spa Plumbing
[Fig. ]
AB500 Pump Air Bleeder (no valve)
(Photo shows AB500 mounted on Magnaflow. Maverick and Magnaflow have the same threads.)
Spa Plumbing
[Fig. ]
Click to see Air Bleeder dimensions.



NOTES:
Pump Horsepower:
(cd) Horsepower is the continuous duty output power of the motor or the pump load to the motor.
(spl) Horsepower is used by the hot tub industry (for marketing reasons??).
(bd) Horspower is the motor's maximum load (exceeding this load will burn out the motor).

Model numbers with suffix (-1) indicates the motor is single speed.

Model numbers shown on Table 2 and Table 3 indicate discharge straight up.
Model numbers with suffix (-3) indicates the discharge is to the right.
Model numbers with suffix (-4) indicates the discharge is to the left.

No O.E.M. dealers or distributor discounts with limited offer prices.

All pumps are not provided with unions, unions sold separately. Unions are identified by plumbing dimensions (like 1.5" or 2.0"), but these numbers ARE NOT the physical outer pipe dimensions. These numbers indicate the waterflow volume going into and out of the pump. Please use part numbers as identified for your application.

All electrical work must be performed by a licensed electrician.
All plumbing work must meet I.A.P.M.O., UL 1563, and all local codes and regulations and must be performed by a licensed plumbing contractor.



Exploded Views & Parts List
Any Size 56-Frame Pump Volute and Faceplate
Both Intake and Discharge have
the same threads and
outer thread dimensions.
Any Size 56-Frame Pump Volute Rearview
Any Size 56-Frame Pump Volute
Part #1112S (rearview)
Any Size 48-Frame Pump Volute and Faceplate
Both Intake and Discharge have
the same threads and
outer thread dimensions.
Any Size 48-Frame Pump Volute Rearview
Any Size 48-Frame Pump Volute
Part #1112 (rearview)
Any Size Pump Exploded View

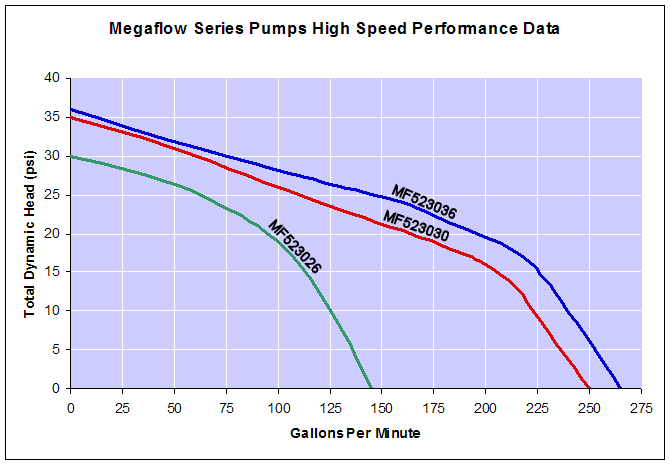

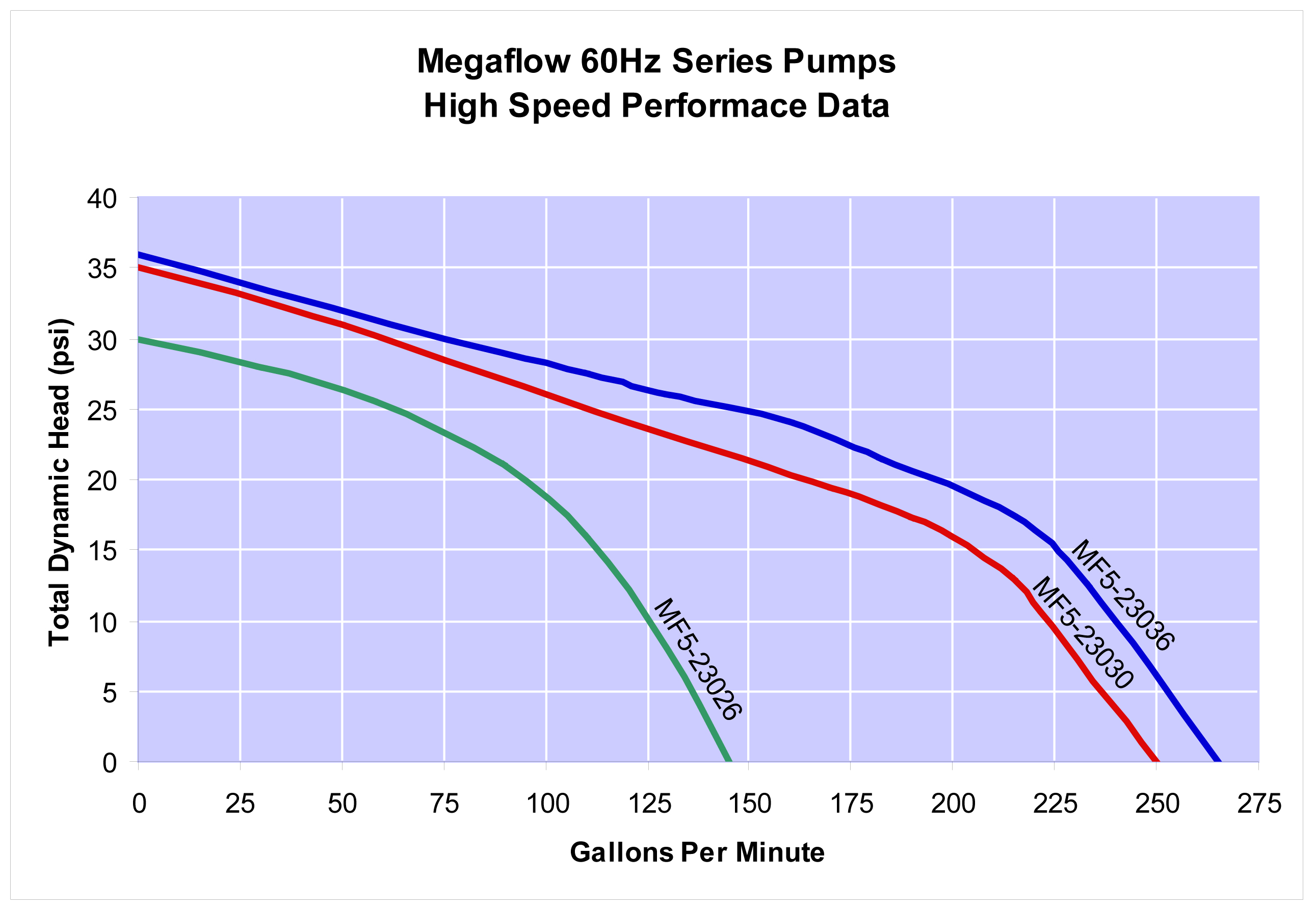

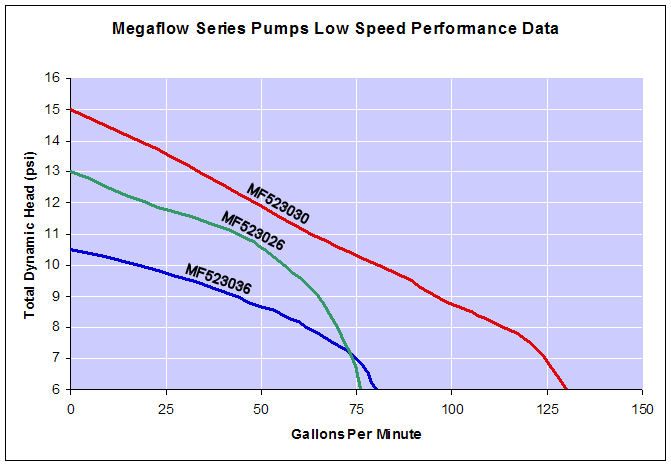

Performance Data



Replace your old spa or hot tub pump with the latest technology from Acura Spa Systems, Inc. We have over 1.3 million spa and hot tub pumps sold and operating for the last 22 years. All of our spa and hot tub pumps are ETL listed and tested per UL Standard 1081. Our long lasting spa and hot tub pumps are the quietest, most innovative, and most energy efficient in the industry. We are the only spa pump manufacturer to sell direct to the public. Since 1987, our hot tub pumps have been powered by Magnetek Motors, A.O. Smith Motors, Emerson Motors, Marathon Electric and Franklin Electric Motors. Our pumps for many years have supplied many hot tub manufacturers such as: ThermoSpas, LifeSpas, Islander Spas, Catalina Spas, Diamante Spas, Life Spring Spas and many others.



**Beating competitor's price: We will meet or beat any competitor's written quotation for hardware of the same capability, such as: plumbing size, voltage, motor horsepower, motor 1 or 2-speed, heater length, safety test report, etc.

A $9.95 Handling charge is applied to all orders.

All products sold per our "Terms and Conditions" found in the "Support" section of our menu.

When your order is produced, the pump motor used (A.O. Smith, Regal Beloit, Marathon Electric, etc.) will be whatever is in stock in our factory at the time.
